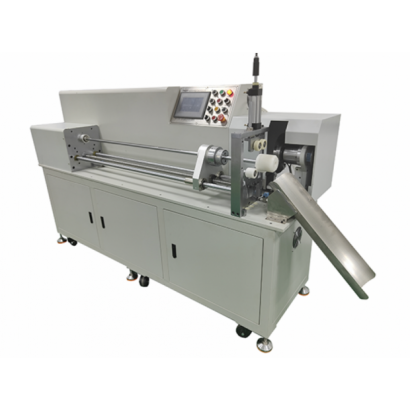

SHY1200 全自動切紙管機
紙軸最長距離 /Maximum distance of paper shaft:1200mm
切紙管最窄距離 / Narrowest distance of paper cutting tube:5mm
適用紙筒直徑 / Applicable cylinder diameter:1英吋、1.5英吋、3英吋紙管(可定制)
適用紙管臂厚/ Applicable paper tube arm thickness:2-20mm
控制系統/ Control system:PLC全伺服控制/PLC full servo control
上料方式 / Feeding mode:手動/Manual
下料方式 / Blanking method:自動/automatic
切紙管速度/ Paper cutting tube speed:進刀響應速度 0.3秒/刀(切管長度有區別)The feed response speed is 0.3 s / tool (the pipe cutting length is different)
切管精度/ Pipe cutting accuracy:0.2mm
電壓及功率 / Voltage and Power:220V/15A
總功率 / Total power:3KW
外形尺寸 / Overall Dimension:2150mm(長)× 660mm( 寬)x 1350mm(高)
機器重量 / Weight:約700KG
備注:其它數控切紙管機 機型包含SHY600、SHY1000。
Note: Other CNC tube cutter models include shy600 and shy 1000
