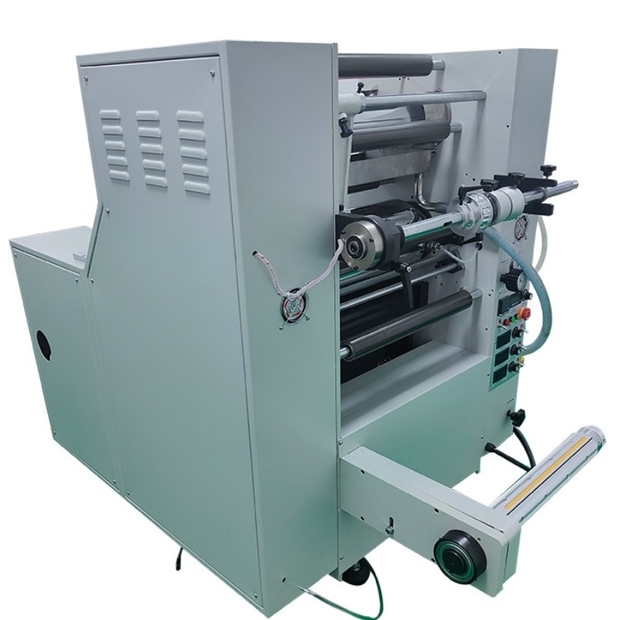

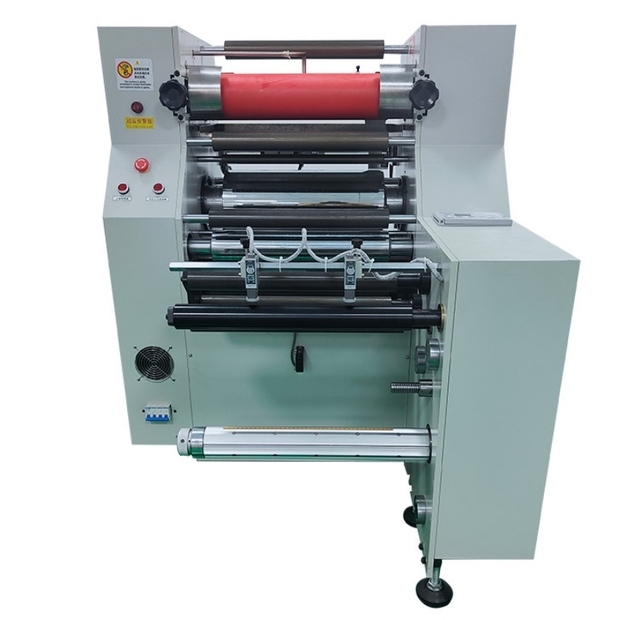

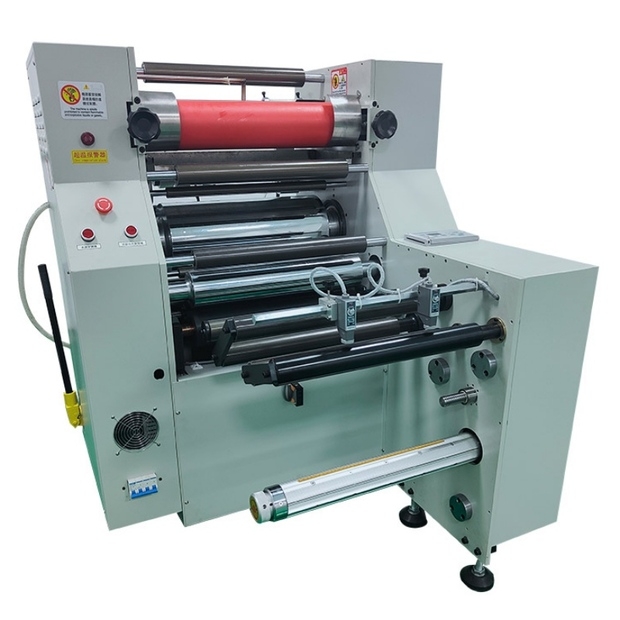

XHM500S-J 多功能覆膜機(糾偏型)

XHM500S-J 多功能覆膜機(糾偏型)

XHM500S-J 多功能覆膜機(糾偏型)

  • XH500S封面.jpg
  • XH500S_1_.jpg
  • XH500S_2_.jpg
詳細介紹
型號 / Model: XHM500S-J
紙捲最大外徑/Max. Rewind diameter:520mm
覆膜完度/Roll laminating width:100mm ( min) ~ 420mm ( max )
紙芯內徑/Core Diameter:76mm
滾筒長度/Roller length:500mm
覆膜方式/Film covering method:多功能(塗膠覆膜/加熱覆膜)Multifunctional (glue coating / heating coating)
覆膜速度/Laminating Speed:6 ~ 70m/min
覆膜溫度/Laminating Temperature:80-130 °C
加熱方式/ Heating Way:油加熱/Heating oil
導熱油型號/Heat conducting oil Model:320#
電壓及功率 / Voltage and Power:380V、6KW
外形尺寸 / Overall Dimension:1380(長) x 1200(寬)x 1350(高)
機器重量/Weight:0.8t

標配:分膜刀組、除除塵棍裝置。
Standard contiguration: cutting membrane knite group or dusting roller device
備注:覆膜溫度可根據客戶需求訂做。
Note: the film temperature can be customized according to customer demand.
